Clay Interlock Brick Making Machine
- – √ Daily Output | 3,000 – 11,520 Interlock Clay Bricks
- – √ Investment Range | $6,800 – $38,000
- – √ Monthly Profit Potential | $2,800 – $9,500
- – √ ROI Period | 18 – 24 Months
- – √ Operating Worldwide | 45+ Countries
What is a Clay Brick Making Machine?
- – Rural areas with abundant local clay/soil deposits
- – Remote villages lacking stable municipal power supply
- – Small family workshops producing earth interlock bricks
- – Investors pursuing ultra-low raw material cost production
- – Contractors doing temporary rural construction projects
- – Low-budget startups without large aggregate supply
Why Choose Clay Interlock Brick Production?
Ultra-Low Raw Material Cost
Multiple Power Options Available
Compact Small Footprint
Ultra-Low Budget Mountain Village Startup
Simple Operation & Low Labor Threshold
Low Maintenance Expense
Complete Clay Interlock Machine Series (5 Models)
QT4-10 High Output Stationary Clay Press

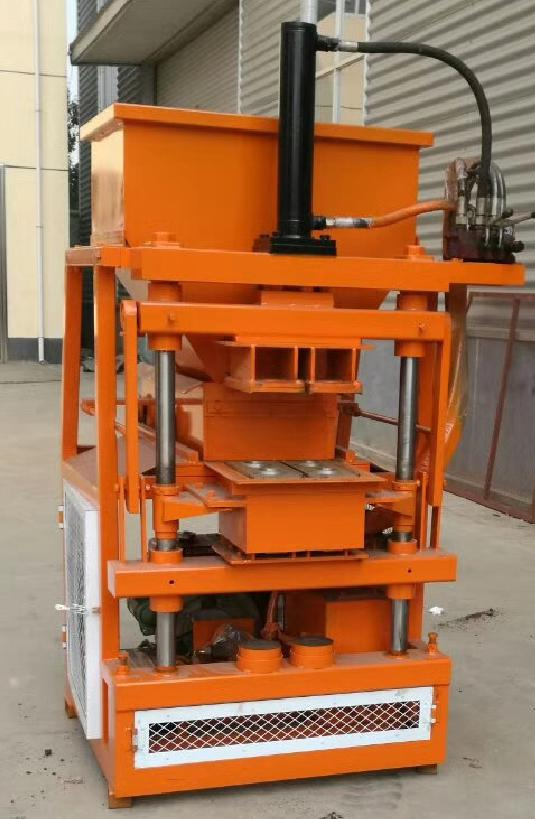

QT2-10 Standard Electric Clay Machine
QT2-25 Dual-Purpose Clay Brick Equipment
QT2-40 Fully Manual Mini Clay Machine
M7MI TWIN Dual-Mold Mobile Diesel Clay Egg Layer
Full Spec Table for All 5 Clay Brick Models
| SPEC ITEM | QT4-10 High Output Stationary |
QT2-10 Standard Stationary |
QT2-25 Dual Power Small |
QT2-40 Fully Manual Mini |
M7MI TWIN Diesel Mobile Twin |
|---|---|---|---|---|---|
| Drive Mode | 11KW Pure Electric Hydraulic | 7.5KW Electric Hydraulic | 5.5KW Electric/Diesel Dual | No Power, Fully Manual | 5.5KW Diesel Independent |
| Molding Cycle Time | 10s | 10s | 20-25s | 40s | 10s |
| Forming Hydraulic Pressure | 25-32 Mpa | 16 Mpa | 16 Mpa | Manual Pressure | 16 Mpa |
| Main Machine Weight | 3.5 T | 1.3 T | 400 KG | 150 KG | 1560 KG |
| Overall Dimension L*W*H (mm) | 1800*1500*2210 | 1600*1400*2100 | 1600*820*1700 | 600*400*800 | 2950*1700*1600 |
| Required Operators | 2-3 Persons | 2-3 Persons | 2-3 Persons | 1-2 Persons | 2-3 Persons |
| 8h Daily Interlock Clay Brick Output | 11520 Pcs | 10000 Pcs | 4320-5400 Pcs | 3000 Pcs | 11520 Pcs |
| Needed Workshop / Ground Area | 150 ㎡ | 120 ㎡ | 80 ㎡ | 60 ㎡ | 150 ㎡ Flat Ground |
| Estimated Full Line Investment | $38,000 | $24,500 | $14,500 | $6,800 | $36,000 |
| Monthly Net Profit Range | $7,800 – $9,500 | $6,500 – $8,800 | $4,200 – $6,300 | $2,800 – $4,000 | $7,500 – $9,200 |
| Average ROI Cycle | 18 – 22 Months | 19 – 23 Months | 21 – 25 Months | 22 – 24 Months | 18 – 23 Months |
Professional Clay Brick Equipment Selection Guide
QT4-10 – High Volume Clay Choice
$40K budget, ideal for 10K+ daily clay brick demand with fixed workshop and municipal power.
25-32MPa high pressure with 10s molding cycle — highest output among stationary electric clay machines.
Low risk (18-22 months ROI) with expansion path to mobile machine for temporary project orders.
M7MI TWIN Mobile Diesel – Mobile Off-Grid Choice
$36K budget, ideal for scattered construction sites with no stable grid power and abundant clay.
Diesel-driven self-walking egg layer — no fixed factory needed, double mold for quick relocation.
Medium risk (18-23 months ROI) with growth path to build fixed QT4-10 workshop later.
QT2-25 Dual Power – Flexible Power Choice
<$15K budget, ideal for village mini factories with limited 80㎡ space and unreliable grid power.
Dual electric/diesel drive — flexible power switch for any grid condition.
Very low risk (21-25 months ROI) for small batch local sales.
QT2-40 Fully Manual – Ultra Budget Choice
<$10K budget, ideal for tiny land with no electricity infrastructure and minimal local housing brick demand.
Zero power, ultra-light 150KG — cheapest full set with only 1-2 operators needed.
Very low risk (22-24 months ROI) with zero electricity bill pressure.
4 Hot-Selling Clay Brick Machines Detailed Introduction
QT4-10 High Output Stationary Clay Brick Machine
What It Is: Flagship fixed hydraulic interlock clay press with 10s ultra-fast molding cycle. 25-32MPa stable high pressure produces dense uniform bricks using local clay + little cement, maximum daily output 11,520pcs for long-term village factories.
Daily Output: 11,520 interlock clay bricks (300×150×100)
Perfect For: Rural villages with stable electricity and large long-term housing brick demand. ROI in 18-22 months.
Investment & Returns:
Machine: $38,000
Monthly Profit: $7,800-$9,500
Team: 2-3 operators
M7MI TWIN Diesel Mobile Egg Layer Clay Machine
What It Is: Self-walking dual-mold diesel hydraulic mobile clay machine — fully independent diesel power without grid support. Forms bricks directly on flat ground without pallets, transportable between construction sites.
Daily Output: 11,520 interlock clay bricks
Perfect For: Contractors undertaking multiple scattered rural construction projects without fixed factory. ROI in 18-23 months.
Investment & Returns:
Machine: $36,000
Monthly Profit: $7,500-$9,200
Team: 2-3 operators

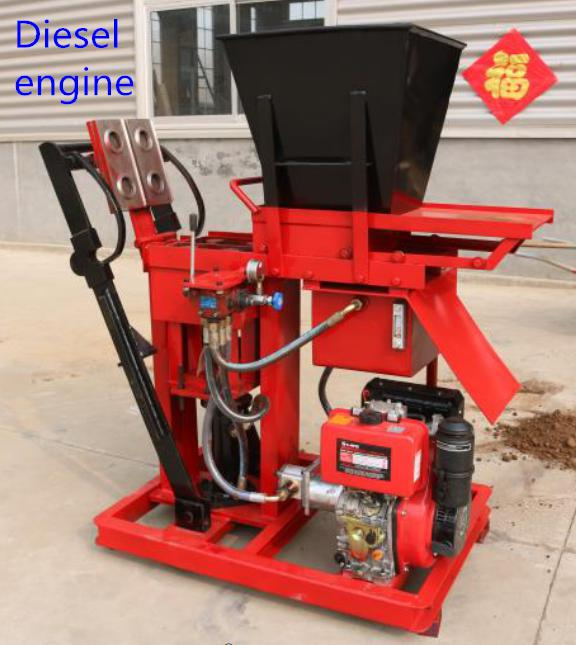

QT2-25 Dual Electric/Diesel Small Clay Brick Machine
What It Is: Compact mini hydraulic clay press with dual power switching — electric when available, diesel during blackouts. Small footprint fits family mini workshops.
Daily Output: 4,320-5,400 interlock clay bricks
Perfect For: Village family small factories with unstable municipal power supply. ROI in 21-25 months.
Investment & Returns:
Machine: $14,500
Monthly Profit: $4,200-$6,300
Team: 2-3 operators

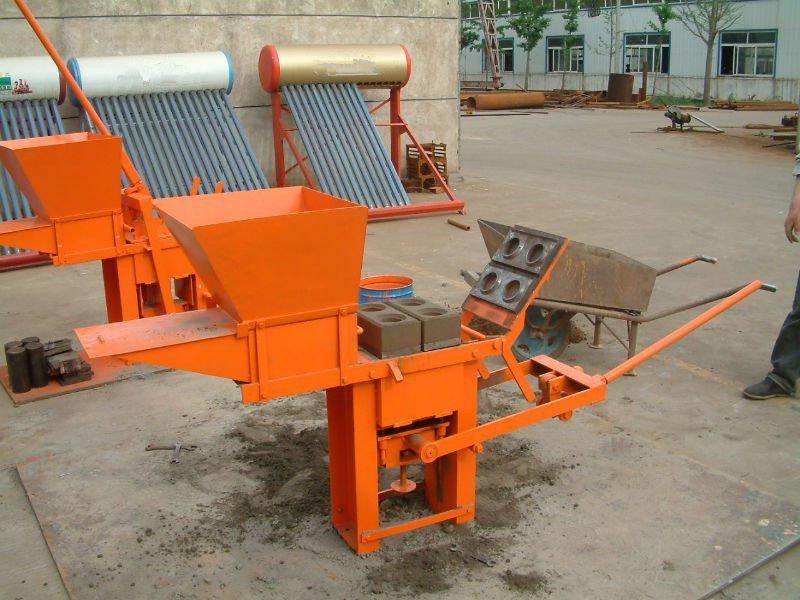

QT2-40 Fully Manual Mini Clay Brick Machine
What It Is: Pure manual clay forming equipment without any power parts — ultra-small volume and light weight. Lowest investment threshold for remote mountain villages without electricity.
Daily Output: 3,000 interlock clay bricks
Perfect For: Ultra-low budget rural startups with zero grid access and tiny local demand. ROI in 22-24 months.
Investment & Returns:
Machine: $6,800
Monthly Profit: $2,800-$4,000
Team: 1-2 operators
