Block Production Auxiliary Supporting Equipment
- – √ Supporting Equipment Categories: 4 Core Series
- – √ Processing Capacity Range: 3.5 ~ 50 m³/h
- – √ Single Unit Investment: $5,000 ~ $32,000
- – √ Overall Production Efficiency Lift: 25% – 50%
- – √ Global Matching Production Lines: 1,000+ Sets
What Is Block Production Supporting Equipment?
- – Factory owners purchasing full automatic block production lines
- – Small semi-auto workshop operators needing mixing equipment
- – Manufacturers with unstable raw material proportion & high waste rate
- – Production lines relying on manual pallet placement (labor intensive)
- – Investors upgrading old block workshops to raise output & cut labor
Why Equip Complete Matching Supporting Machines?
Precise Raw Material Ratio, Lower Defect Rate
Dramatically Cut Manual Labor
Full Match With All QT Series Main Machines
Old Automatic Line Labor Upgrade
Small Occupation, Easy Layout
Simple Maintenance, Universal Spare Parts
4 Core Auxiliary Equipment Series For Block Production
JQ Pan Mixer
JS Twin Shaft Forced Concrete Mixer
PLD Series Automatic Aggregate Batching Machine
Automatic Brick Pallet Feeder
| SPEC ITEM | JQ Pan Mixer (JQ350 Standard) |
JS Twin Shaft Mixer (JS500 Standard) |
PLD Aggregate Batcher (PLD800 Standard) |
Automatic Pallet Feeder |
|---|---|---|---|---|
| Rated Single Batch Volume | 350 L | 500 L | 0.8 m³ Weighing Bin | Auto Pallet Storage |
| Hourly Processing Capacity | 12 ~ 16 m³/h | 25 ~ 30 m³/h | 48 m³/h Max | Match 8~12 molds/hour |
| Total Installed Power | 7.5 KW | 18.5 + 5.5 KW | 3 × 2.2 KW | 2.2 KW |
| Required Floor Area | 12 ㎡ | 25 ㎡ | 30 ㎡ | 8 ㎡ |
| Overall Dimension L*W*H (mm) | 1400×1400×1600 | 3200×1500×1900 | 3100×1600×2100 | 2200×900×1300 |
| Machine Net Weight | 0.8 T | 1.5 T | 2.1 T | 0.45 T |
| Matching Main Machine Type | Semi-auto / Manual QT4 Series | QT6/QT8/QT12 Full Auto Lines | All Automatic Block Machines | QT6+ above Full Auto Formers |
| Weighing Precision | Manual Feeding Estimate | Manual Feeding Estimate | ±2% High Precision | No Weighing Function |
| Estimated Single Unit Price | $5,200 | $12,000 | $18,000 | $6,500 |
| Labor Reduction After Installation | 1~2 Workers | 2~3 Workers | 2~3 Workers | 1~2 Workers |
| Auxiliary ROI Cycle | 7~10 Months | 8~11 Months | 9~12 Months | 6~9 Months |
Auxiliary Equipment Selection Guide Based On Your Production Line
JQ Pan Mixer – Small Scale Mix Choice
Single small auxiliary budget, ideal for QT4-24/QT4-28 semi-auto lines with limited factory space.
Small footprint, easy to move — solves manual mixing unevenness and reduces 1-2 mixing workers.
Very low risk with 28% efficiency boost, ROI in 7-10 months.
JS500 Mixer + PLD800 – Auto Line Match Choice
Medium daily output with QT6-15/QT8-15 automatic lines, pursuit of stable raw material proportion.
JS large capacity mixer + PLD automatic batching — guarantees material precision and cuts 4-6 handling workers.
Low risk with 40% overall line capacity boost, ROI in 8-12 months.
JS500 + PLD1200 + Pallet Feeder – Full Auto Flow Choice
Large daily block orders with QT12-15 high output full auto line, need unmanned feeding and pallet flow.
JS500 + PLD1200 automatic batching + pallet feeder — complete batching-mixing-pallet feeding flow with minimal operators.
Medium risk with 50% production efficiency boost, ROI in 9-12 months.
Automatic Brick Pallet Feeder – Pallet Bottleneck Choice
Already own JS mixer and batcher, but pallet placement relies on workers and becomes production bottleneck.
Low single unit cost, fast installation — directly cuts pallet placement labor with shortest payback among all auxiliaries.
Very low risk with 35% pallet feeding efficiency boost, ROI in 6-9 months.
Featured Models - In-Depth 4 Models Analysis
JQ Pan Mixer (JQ350 Standard)
What It Is: Vertical pan small mixing equipment with compact body and light weight — convenient transfer between small semi-auto production sites. 350L single batch volume, matched JQ350 designed for QT4 series semi-auto & manual block machines.
Matching Scale: Small rural semi-auto workshops with daily output below 12,000 blocks
Perfect For: Budget-conscious operators needing low entry cost, simple maintenance and easy movement. ROI in 7-10 months.
Investment & Returns:
Unit: $5,200
Power: 7.5KW
Floor: 12㎡

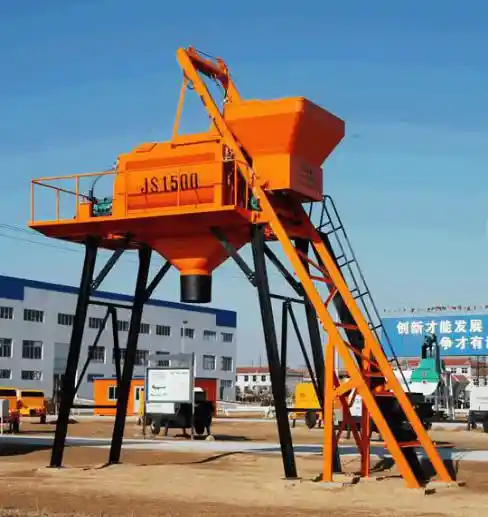

JS Twin Shaft Forced Mixer (JS500 Standard)
What It Is: Double horizontal forced stirring structure with mixing uniformity far better than pan mixer. Large hourly output 25-30m³/h, exclusive matching QT6/QT8/QT12 large automatic block production lines with PLD batcher continuous feeding cooperation.
Matching Scale: Medium & large full-auto factories with daily output above 20,000 blocks
Perfect For: Operators pursuing high stirring efficiency, uniform concrete and stable long-time continuous operation. ROI in 8-12 months.
Investment & Returns:
Unit: $12,000
Power: 18.5+5.5KW
Floor: 25㎡

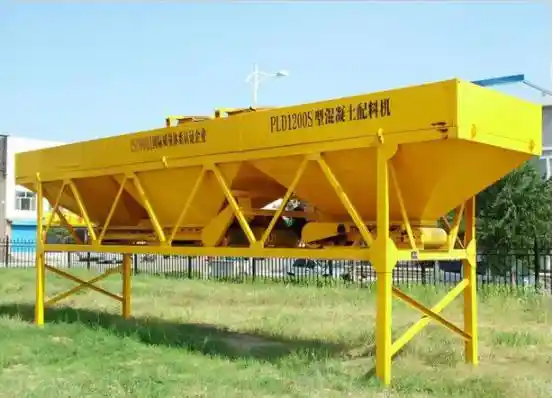

PLD Series Automatic Aggregate Batching Machine (PLD800 Standard)
What It Is: Multi-hopper automatic weighing equipment storing sand, stone, cement separately with ±2% high precision proportion feeding. Cancels manual bucket weighing, fundamentally solves block quality instability from random raw material ratios. Must cooperate with JS mixer for full-auto lines.
Matching Scale: All automatic block forming production lines
Perfect For: Operators needing precise raw material control to reduce reject rate and save long-term material waste cost. ROI in 8-12 months.
Investment & Returns:
Unit: $18,000
Power: 3×2.2KW
Floor: 30㎡
Automatic Brick Pallet Feeder
What It Is: Dedicated pallet automatic conveying equipment for full auto block machines — stores multiple pallets and pushes into forming mold synchronized with main machine cycle. Completely removes workers standing beside mold to place pallets.
Matching Scale: QT6 and above all automatic block production equipment
Perfect For: Operators needing to solve pallet feeding bottleneck and cut 1-2 full-time workers with ultra-short payback. ROI in 6-9 months.
Investment & Returns:
Unit: $6,500
Power: 2.2KW
Floor: 8㎡
What's Included In Complete Supporting Equipment Package
Raw Material Weighing & Mixing Combination
– PLD batching machine (optional): multi-bin aggregate weighing hopper, sensor weighing system
– JQ / JS mixer: stirring tank, mixing blades, drive motor
– Auxiliary feeding conveyor (optional): connect batcher to mixer
Pallet Automatic Feeding System
– Pallet storage rack, automatic push cylinder, synchronous control cabinet
