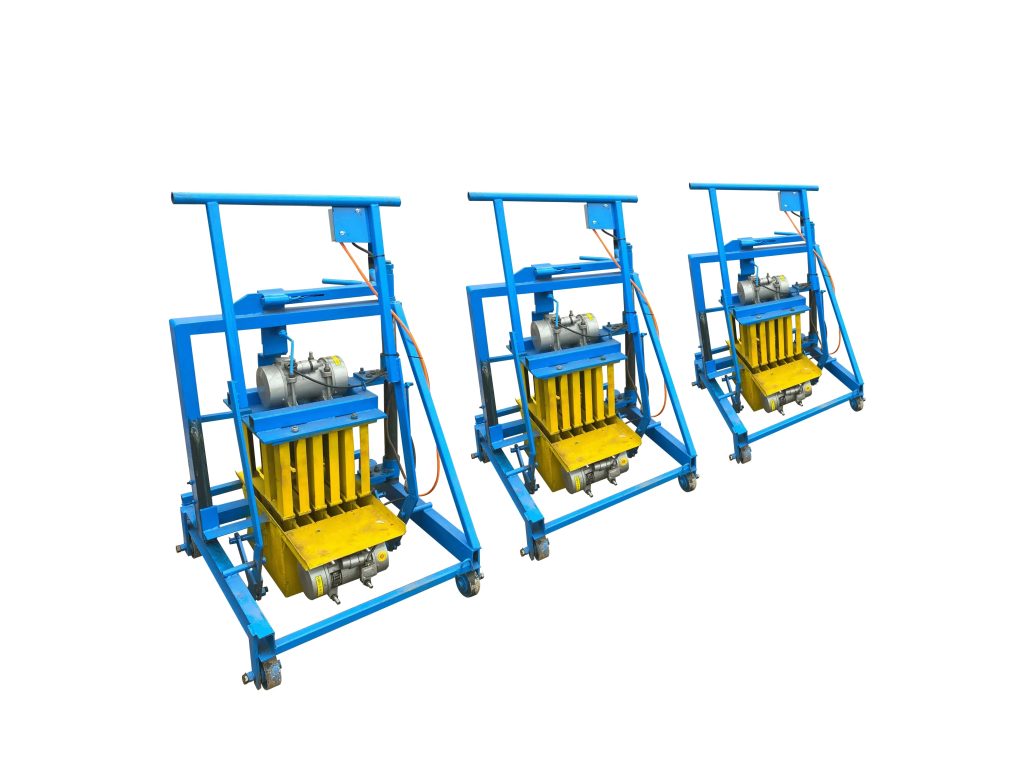

The QTM2-45 mobile block machine represents a breakthrough in portable concrete block manufacturing technology. This innovative machine combines mobility, efficiency, and versatility to deliver high-quality blocks for various construction needs. It stands out for its ability to produce blocks directly on the ground without pallets, making it an ideal choice for small to medium-scale construction projects. The machine’s compact design and user-friendly operation system make it perfect for entrepreneurs entering the block-making industry or established businesses looking to expand their production capabilities.
Operating Principles and Core Functions
Basic Operation Mechanism
The QTM2-45 mobile block machine operates through a sophisticated yet straightforward process that ensures consistent block production. The machine utilizes a hydraulic system that controls the compression and molding process, allowing for precise control over block formation. The operation begins with the mixing of raw materials – typically concrete mix – which is then fed into the hopper. The machine’s vibration system ensures uniform material distribution, while the hydraulic press applies the necessary pressure to form solid, durable blocks. This precise combination of vibration and pressure results in blocks with excellent density and strength characteristics.
Production Process Flow
The production workflow of the QTM2-45 mobile block machine is streamlined for maximum efficiency. The process starts with material preparation, where the concrete mix is carefully proportioned according to specifications. Once loaded into the hopper, the small mobile block machine‘s automated feeding system distributes the mixture evenly into the mold. The mold then undergoes controlled vibration and compression cycles, with a moulding period of 40-50 seconds per cycle. The machine’s direct ground-laying capability eliminates the need for pallets, significantly reducing operational costs and simplifying the production process.
Control and Monitoring Systems
The QTM2-45 features an advanced control system that monitors and manages all aspects of block production. The control panel provides operators with real-time feedback on machine performance, material flow, and production rates. It allows for quick adjustments to vibration intensity, compression force, and cycle timing, ensuring optimal block quality. The machine’s electrical system can operate on either single-phase or three-phase power, providing flexibility in different working environments. The monitoring system also includes safety features that protect both operators and equipment during production.
Production Capabilities and Versatility
Block Types and Specifications
The QTM2-45 mobile block machine demonstrates remarkable versatility in block production. It excels in manufacturing various block types, including hollow blocks, solid bricks, and custom blocks. The machine can produce blocks measuring 400x200x200 mm at a rate of 960 blocks per 8-hour shift, or 400x100x200 mm blocks at 1,440 pieces per 8-hour shift. This flexibility in block dimensions and types makes it suitable for diverse construction requirements, from residential projects to commercial developments. The machine’s ability to switch between different mold types allows producers to respond quickly to changing market demands.
Output Quality and Consistency
Quality control is a paramount feature of the QTM2-45 mobile block machine. The machine’s precision-engineered vibration and compression systems ensure consistent block density and strength across production runs. Each block produced meets industry standards for dimensional accuracy and structural integrity. The small mobile block machine‘s automated processes minimize human error, resulting in blocks with uniform appearance and physical properties. The quality control features include sensors that monitor material consistency and compression force, ensuring every block meets specifications.
Production Efficiency and Optimization
The QTM2-45 maximizes production efficiency through its well-designed operational features. With machine dimensions of 9208001260 mm, it maintains a compact footprint while delivering impressive output. The machine’s mobility allows for easy relocation between construction sites, reducing transportation costs and setup time. Its direct ground-laying capability eliminates the need for pallet investment and storage, streamlining the production process. The machine’s optimized cycle time of 40-50 seconds per mold ensures steady production flow while maintaining product quality.
Maintenance and Technical Support
Regular Maintenance Requirements
The QTM2-45 Mobile Block Machine requires systematic maintenance to ensure optimal performance and longevity. Daily maintenance includes cleaning the mold box, vibration system, and material feeding components. The hydraulic system needs regular oil level checks and periodic fluid replacement. Operators should inspect wear parts such as mold plates and vibration components weekly, replacing them as needed to maintain production quality. The machine’s design facilitates easy access to critical components, simplifying maintenance procedures and reducing downtime.
Troubleshooting and Problem Resolution
The small mobile block machine comes with comprehensive troubleshooting guidelines that help operators identify and resolve common issues quickly. The control system includes diagnostic features that pinpoint potential problems before they affect production. Common adjustments, such as vibration timing and compression force settings, can be made easily through the control panel. The machine’s modular design allows for quick component replacement when necessary, minimizing production interruptions.
Technical Support Services
Comprehensive technical support ensures operators can maximize the machine’s potential. Initial installation includes thorough operator training covering machine operation, maintenance, and basic troubleshooting. Ongoing support includes 24/7 access to technical expertise, rapid response to service requests, and regular updates on maintenance best practices. The manufacturer maintains a global network of service technicians and parts suppliers, ensuring prompt assistance when needed.
Conclusion
The QTM2-45 Mobile Block Machine represents a perfect balance of efficiency, mobility, and reliability in block production. Its versatile capabilities, combined with user-friendly operation and comprehensive support, make it an excellent choice for businesses of all sizes. The machine’s innovative features and proven performance continue to set industry standards for mobile block production.
Contact Us
Ready to revolutionize your block production capabilities? Experience the superior quality and efficiency of Raytone Machinery’s QTM2-45 mobile block machine. Our global expertise, competitive pricing, and comprehensive support services ensure your success in the block-making industry. Contact us today at hazel@raytonechina.com to discover how we can help you achieve your production goals with our world-class machinery and 24/7 technical support.
